Honda 10,000 Watt 120/240V Industrial 50-State (California) Generator w/ Co-Minder Detection System EB10000AG

Honda

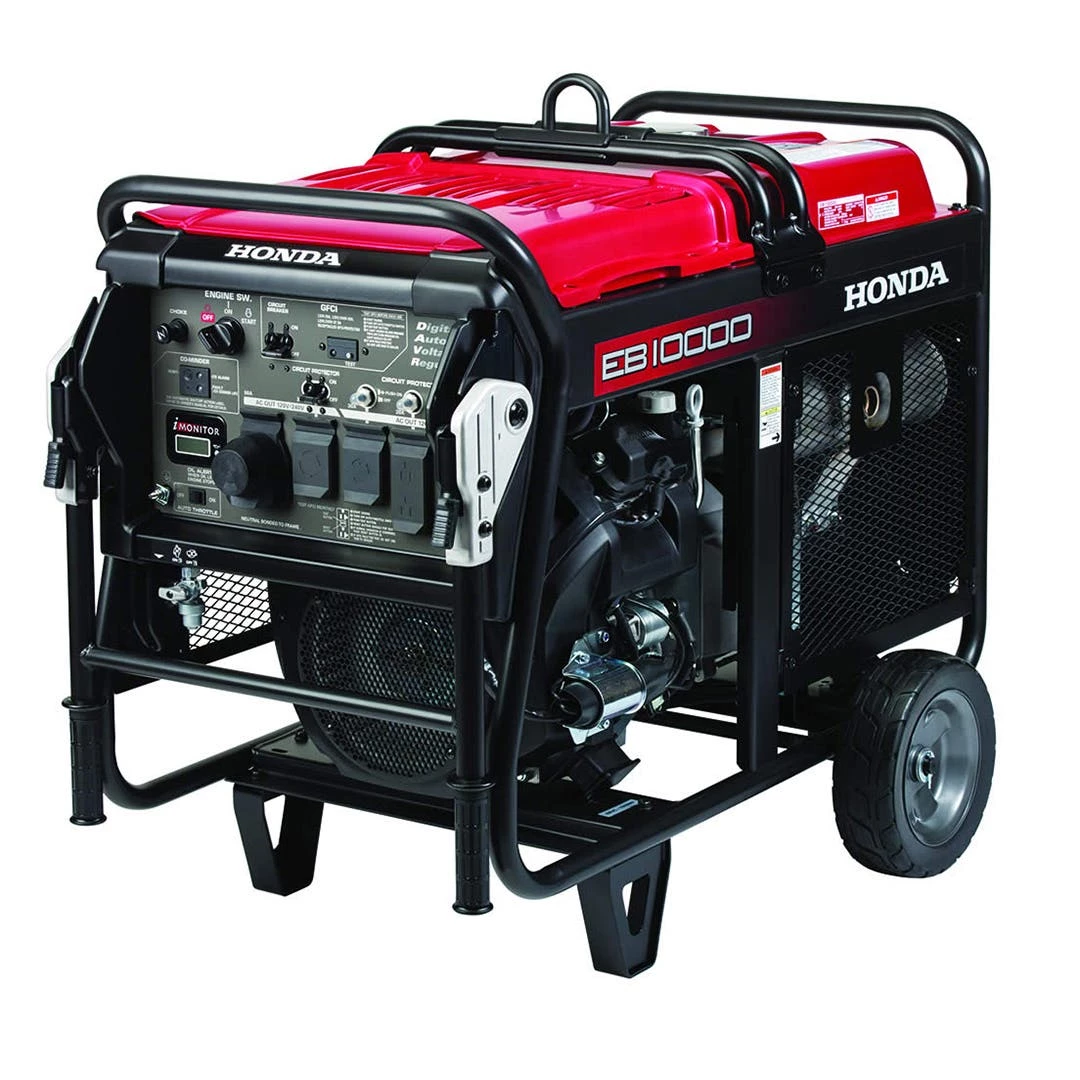

10000 Watt 120/240V Industrial Generator w/ Co-Minder Detection System EB10000AG

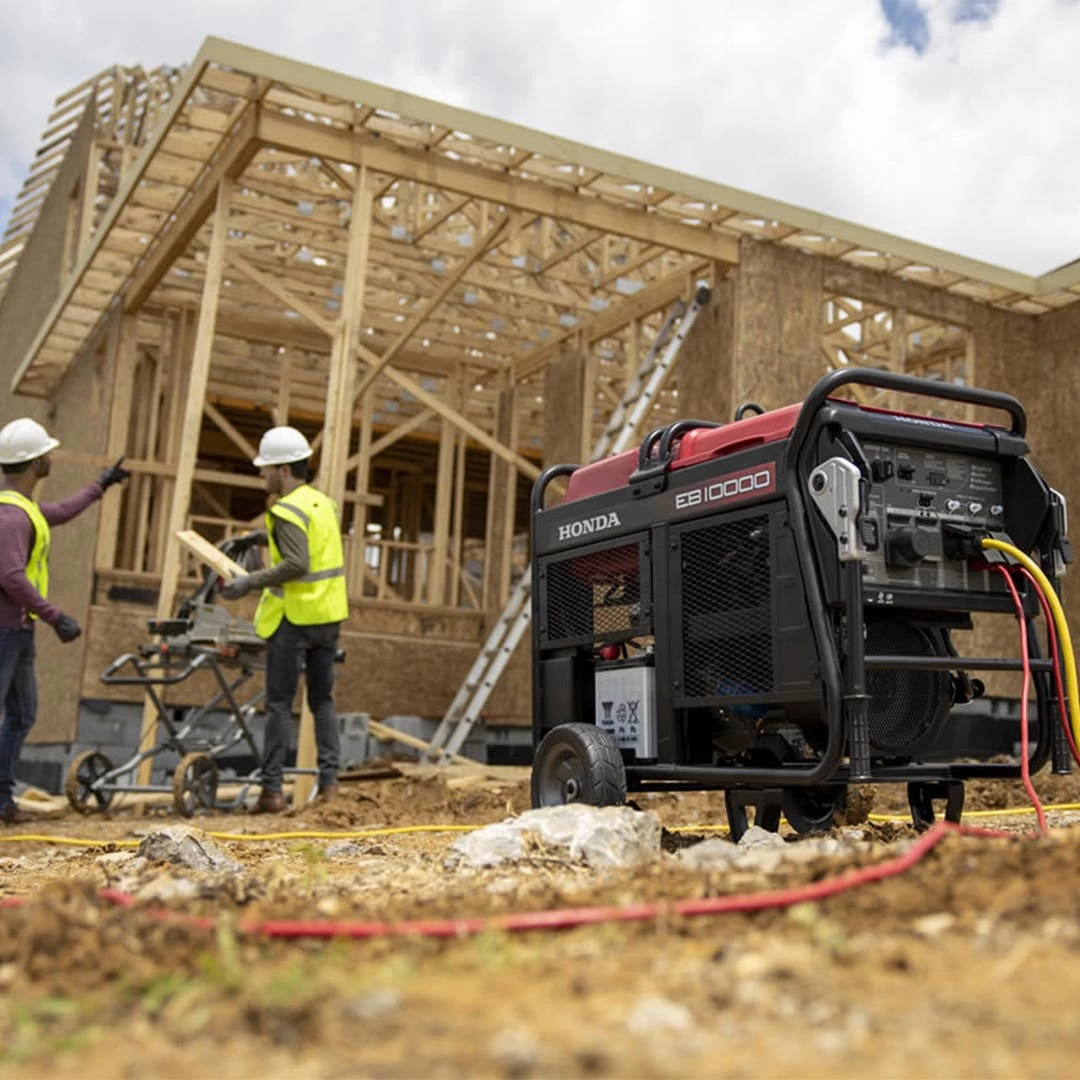

The EB10000 has a compact, slim design that can be easily installed on the job site. A centralized exhaust mechanism creates a unique hot” zone for exhaust and “cool” zone for operation and passage. This design is especially helpful when using multiple units, as they can be easily positioned so as not to impact each others’ cooling ventilation.

FEATURES:

• 50-State – California model.
• CO-MINDER continuously monitors carbon monoxide (CO) levels. It automatically shuts down the generator before detected CO levels near the generator become dangerously high.
• The Honda V-Twin engine offers more power, reliability, greater fuel economy and reduced emissions in a more compact package.
• The EB10000 uses Honda’s exclusive DAVR (Digital Automatic Voltage Regulator). The DAVR is designed to hold the voltage stability within a +/- 1% range during operation. This provides more consistent power.
• The Honda EB10000 generator operates at a quiet noise level—73 decibels at 7 meters (equivalent to the noise of a vacuum cleaner).
• The control panel is positioned on the narrow side of the generator for convenient, easy access to all outlets.
• i-Monitor provides information on hours of operation, generator output voltage, and battery voltage, as well as diagnostics for convenient dealer servicing.
• Wide, positive lock folding handles offer convenient transport and storage and a more compact unit.
• The sturdy wheel kit makes the EB10000 easier to transport, even over rough terrain.
• The EB10000 runs an impressive 7.9 hours at half load and 5.4 hours at full load.
• 3 year commercial/residential warranty.

SPECIFICATIONS:

Engine	Honda GX630
Displacement	688cc
AC Output	120/240V 10000W max. (83.8/41.6A) 9000W rated (75/37.5A)
iAVR Output	N/A
Receptacles	20A 125V GFCI Duplex (2), 30A 125V Locking Plug, 30A 125/250V Locking Plug, 50A 125/250V Locking Plug
DC Output	N/A
Starting System	Electric, recoil
Fuel Tank Capacity	8.19 gal
Run Time per Tankful	5.4 hrs @ rated load, 7.9 hrs @1/2 load
Dimensions (L x W x H)	41.0″ x 27.7″ x 35.1″ including hanging hook & with handlebars folded
Noise Level	73 dB(A) @ rated load, 71 dB(A) @ 50% load
Residential Warranty	3 Years
Commercial Warranty	3 Years
